AutoBot is a simple project using a vehicle kit that leverages Raspberry PI to control the motors and a mobile friendly webpage as a controller. This repository contains both instructions on how to build the vehicle, as well as all the code necessary to run it. This project is a good way to get familiar with Raspberry PI and Python.
AutoBot is really a learning project. My 13-year-old son and I decided to take the Tamiya kit that I bought and make it remote controlled using the Raspberry PI. AutoBot became the result of that learning experience. We started knowing next to nothing about the PI and Python and ended-up with a working robot. Below shows how we assembled the hardware as well as how to configure and use the software.
Here is what the final robot looks like on a video:
Here is a picture of a fully assembled AutoBot:
AutoBot consists of a converted Tamiya 70104 Remote Control Bulldozer and a Raspberry PI. We used the bulldozer as the basic vehicle platform on top of which we placed a the PI with a battery pack.
Tamiya 70104 Remote Control Bulldozer - This is the robot's vehicle. The kit includes the chassis with wheels, tracks, and 2 motors.
Raspberry Pi 3 model B - Raspberry runs the code that takes the instructions from a remote controller and converts them to signals for motors.
Pololu DRV8835 Dual Motor Driver Kit for Raspberry Pi - The motor driver enables it to connect and power the motors with the PI.
Pololu 5V Step-Up/Step-Down Voltage Regulator S7V7F5 - The voltge regulator allows us to power the PI from an external battery back without having to use the USB.
Battery Holder for 4 x AA batteries - Battery holder gives us the ability to use regular AA batteries to power the vehicle and connect them to the PI.

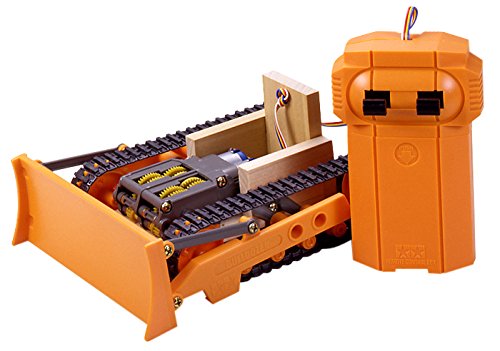

We start with the assembly of the Tamiya vehicle. The kit comes with very good assembly instructions. The cool thing about this kit is that one gets to assemble everything including the gearbox. When assembled, the vehicle will look like the image below.
Note: Before proceeding with adding the Raspberry PI, we recommend that basic operation of the vehicle is tested using the wired remote control.
At this point the vehicle will look like the below image. (Note, we didn't bother to add the bulldozer blade and arms.)
Unfortunately, the kit itself does not come with some kind of platform where we could mount our PI, so we created a crude one from a piece of thin wooden sheet. We'll use this sheet to mount the PI on.
Mounting the cover:
Mounting the Raspberry PI:
Wiring in the motors:
Here is how to wire the motor wires to the terminal blocks. The left most wires (red and black) are power from the battery pack, while the white, red, and blue are for the motors.
Unfortunatelly, the Raspberry PI does not come ready to drive the motors. In order to do that, we need to add in the motor driver and the voltage regulator.
The Pololu motor driver needs to be assembled. It comes with several components including the circuit board, the GPIO female headers, and three 2-pin terminal blocks. Once soldered, the component can be placed on the Raspberry PI and wired to the motors.
Here are instructions all the key information about the motor driver: Pololu DRV8835 Dual Motor Driver Kit for Raspberry Pi
The AutoBot is powered by an external battery. By adding the voltage regulator to the motor drivers, we can both power the motors and the entire Raspberry PI from a single power source.
The voltage regulator will need to be soldered onto the motor driver. Here are instructions all the key information about voltage regulator: Pololu 5V Step-Up/Step-Down Voltage Regulator S7V7F5
Once the hardware is assembled, you'll need to get the software. To do that, clone this repository. It includes everything you need to remote control the robot.
git clone https://github.com/vcollak/AutoBot
Next, configure the server and controller settings. The settings file in settings/settings.py and governs various server and client settings including the IP addresses and TCP ports the servers and clients use.
#This is what the servers (see below about servers) bind to
#You can leave this as is.
HOST = "0.0.0.0"
#Host the robot is connecting to. This is the IP address of
#the server.
HOST_REMOTE = "192.168.1.143"
#TCP port for the first server. You can leave this as is.
PORT = 8000
#app id for security. CHANGE this for security purposes
#Could be anything you want.
APP_ID = "adfdf34134asdfadfadsfa3241324"
#logging level. You can leave this as is.
LOGGING_LEVEL = logging.DEBUG
#controller web admin username.
ADMIN_USER = "admin"
#controller web admin password. CHANGE IT!!!
ADMIN_PASS = "autobotfun"
This file is used by the javascript based controller.
var config = {
//Host the controller is connecting to. This is the IP address and port of
//the controller server. Note that if you change the PORT in settings.py
//this port (:8001 by default) will need to be PORT + 1
connection: 'ws://192.168.1.143:8001'
};
On the machine that will run the servers, install Flask using:
sudo pip3 install Flask
On the Raspbery PI, install wiringpi using:
sudo pip3 install wiringpi
Some of the code from the git repository needs to be deployed to the raspberry PI. You can use the bin/deployRobotCode.sh found in the repository. This will copy following files to the PI:
- clientRobot.py
- /app/modules/vehicle.py
- /app/modules/pololu_drv8835_rpi.py
- /app/settings/settings.py
bin/deployRobotCode.sh 192.168.1.44 pi /home/pi/robot
Where the:
- IP address is the IP of the PI
- the "pi" is the username
- "/home/pi/robot" is the directory where you want the robot to reside (but could be anywhere you want).
There are 3 applications to start on the server and one on the raspberry pi:
sudo python3 server.py
sudo python3 serverWeb.py
sudo python3 serverWebSocket.py
sudo python3 clientRobot.py
** CAVEAT: Make sure you use sudo on the PI. I've seen the code to literally reboot PI if used without sudo **
Here is the output you can expect:
This is what sending a forward command should look like. At this point the robot should be moving forward.
To access the controller, just point your browser to the HOST for instance http://192.168.1.143. By default, users can authenticate to the controller using below credentials. Username: admin Password: autobotfun
** If you're going to host this on the web outside of your test network, we strongly recommend that you change the password in settings.py **
There are several software components that make the robot work. Most of it is written in Python3, and some in html/javascript.
The robot and the server code is architected so the controller and the robot don't require to be on the same network or even know each other's IP addresses or host names. All they need to know is the server IP address that's configured in settings.py using HOST_REMOTE. As long as the server IP address is accessible by both the controller and the robot, everything will work. To test the robot and the controller, we simply found out the local IP address of the test machine the server code (server.py, serverWebSocket.py, and serverWeb.py) is running on. We then started all of the server components. Afterwards, we started the robot, which then connected to the server. Lastly, we went to the HOST_REMOTE IP address using a browser and logged in to the controller.
The python program running on the robot is called clientRobot.py. When executed, the code will connect to the server and await instructions.
The remote controller is a mobile friendly webpage that uses javascript and webSockets to connect to the server and send instructions such as moving the robot forward, backward, left, right or stopping it. When the user taps a command button, the code will send the instructions to the server, which will pass them to the robot.
The server will wait for the instructions from the controller and pass them along to the robot. The server actually runs 3 different python applications:
This is the main server. It listens on a TCP socket for a specific JSON message from the controller. It then passes the message to the already connected robot. Robot also connects to the server via a TCP socket.
This server listens for a message from the controller’s javascript client using a webSocket. When it receives a message, it will connect to the main server (server.py) via a socket and send the message.
This is simply a static web server that serves the login and the controller page.
Here is the overall architecture that depicts the interaction of the controller, servers, and the robot.
Web Socket server: https://github.com/dpallot/simple-websocket-server
Pololu Motor Driver: https://github.com/pololu/drv8835-motor-driver-rpi
- BaseHTTPServer
- collections
- enum
- flask
- http.server
- io
- modules.pololu_drv8835_rpi
- pololu_drv8835_rpi
- select
- SimpleWebSocketServer
- StringIO
- threading
- base64
- codecs
- errno
- hashlib
- json
- logging
- os
- os.path,sys
- queue
- socket
- socketserver
- ssl
- struct
- sys
- threading
- time
- traceback
- wiringpi
- flask
- python-socketio
If you want to run this outside of your test network, you will have to host the server code somewhere in the web. We ran this on Microsoft Azure using a Linux virtual machine. Don't forget to find the outside server IP address and configure both settings.py and settings.js accordingly.
